LONYE Appliance Parts

Details

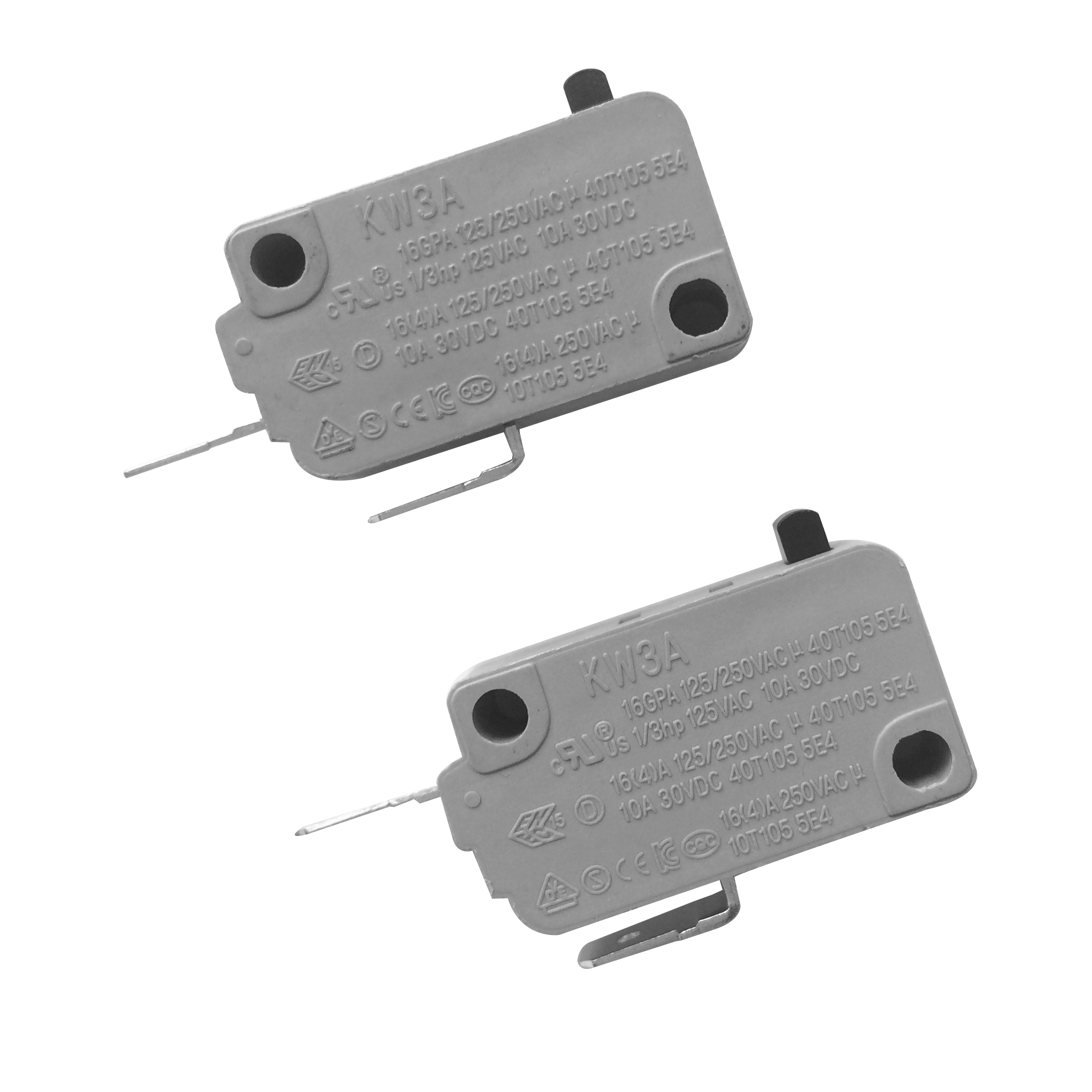

LONYE KW3A Microwave Oven Door Micro Switch for DR52 16A 125/250V(Normally Open+ Normally Close)
Share to：

LONYE KW3A Microwave Oven Door Micro Switch for DR52 16A 125/250V(Normally Open+ Normally Close)

Pro ID： 6990580600476
Price：
￥8.59
Features： Temperature resistance: 105°
Brand： LONYE
Item No： KW3A
Color： Grey
Spec.： Current: 16A; Voltage: 125V and 250V
Product Details
Review(0)

Stop the microwave using the Pause/Clear button rather than just opening the door while it is running. This will prevent this switch breaking contact while conducting current and make it last much longer.

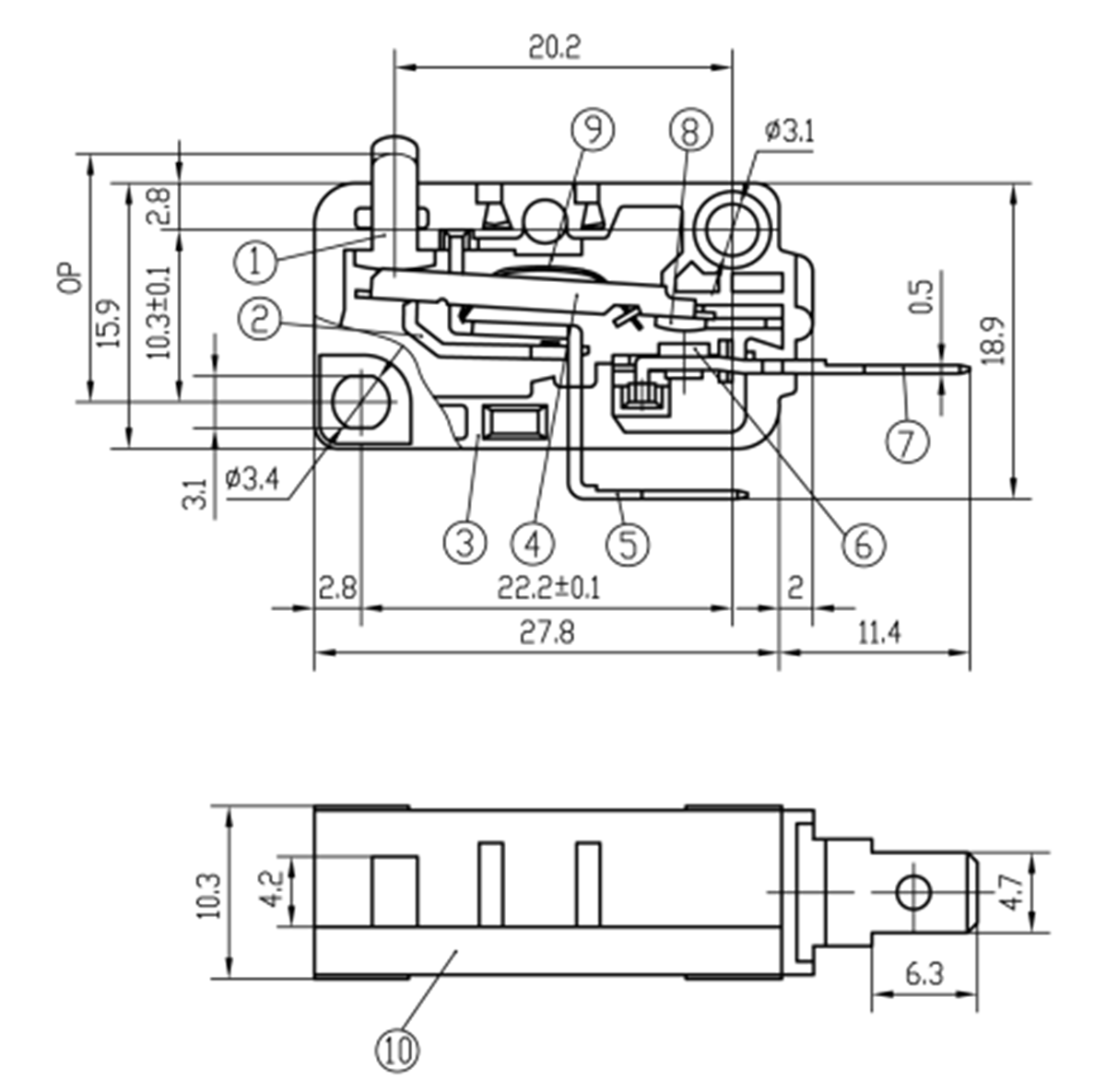

LONYE kw3a switch(normally close) specification：

  • Temperature: 10T105

  • Insulation Strength: 100MΩ Min

  • Test Voltage: AC1000V/2000V

  • Contact Resistance: 30MΩ Max

  • Operating Force: 2N Max

  • Release Force: 0.5N Min

  • Operating Position: 14.9±0.4mm

  • Movement Differential: 0.4mm Max

  • Electronical Life: 50000 Min

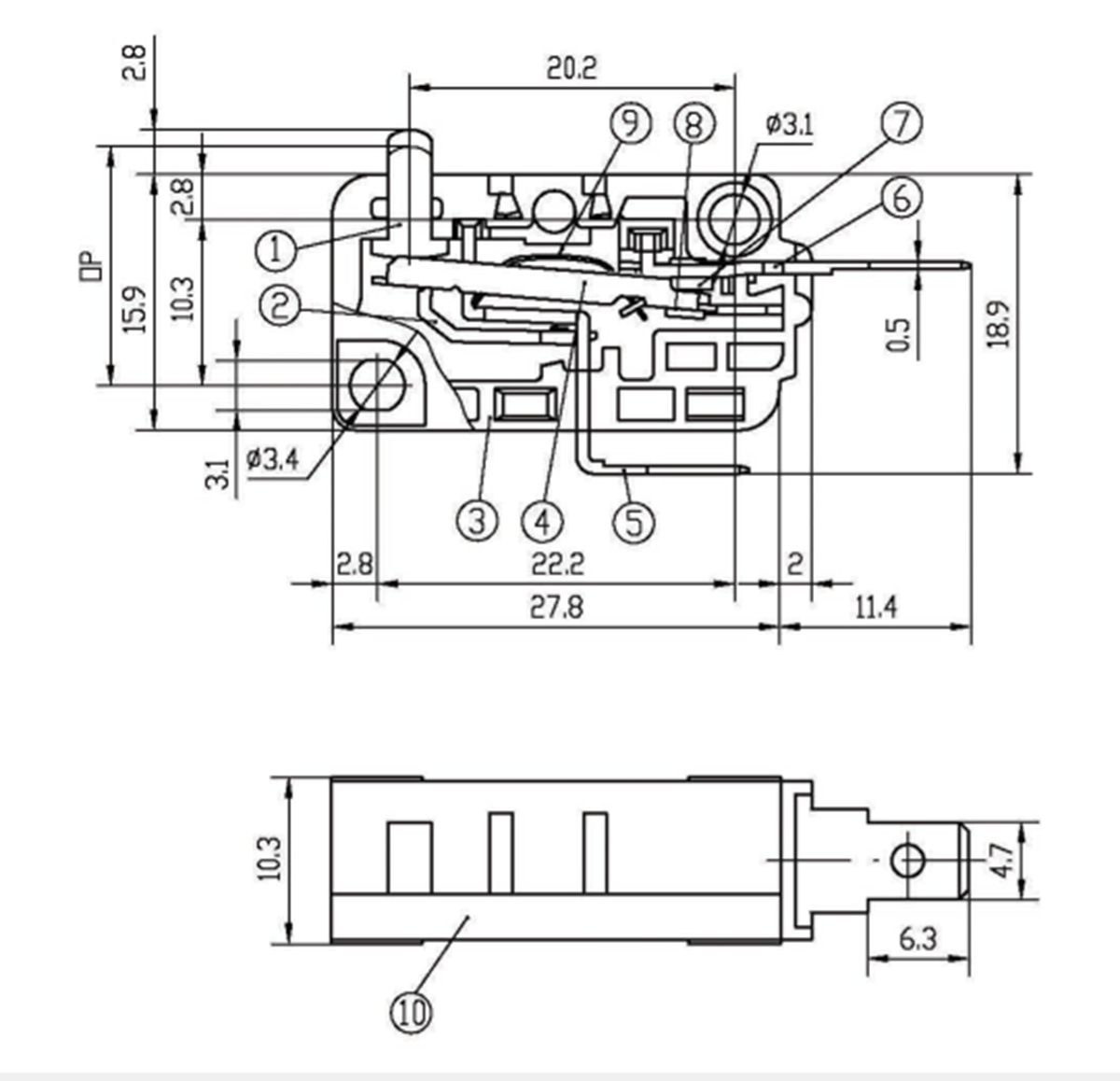

LONYE kw3a switch(normally open) specification：

  • Insulation Strength: 100MΩ Min

  • Test Voltage: AC1000V/2000V

  • Contact Resistance: 50MΩ Max

  • Operating Force: 2N Max

  • Release Force: 0.5N Min

  • Operating Position: 14.9±0.4mm

  • Movement Differential: 0.4mm Max
