Description:

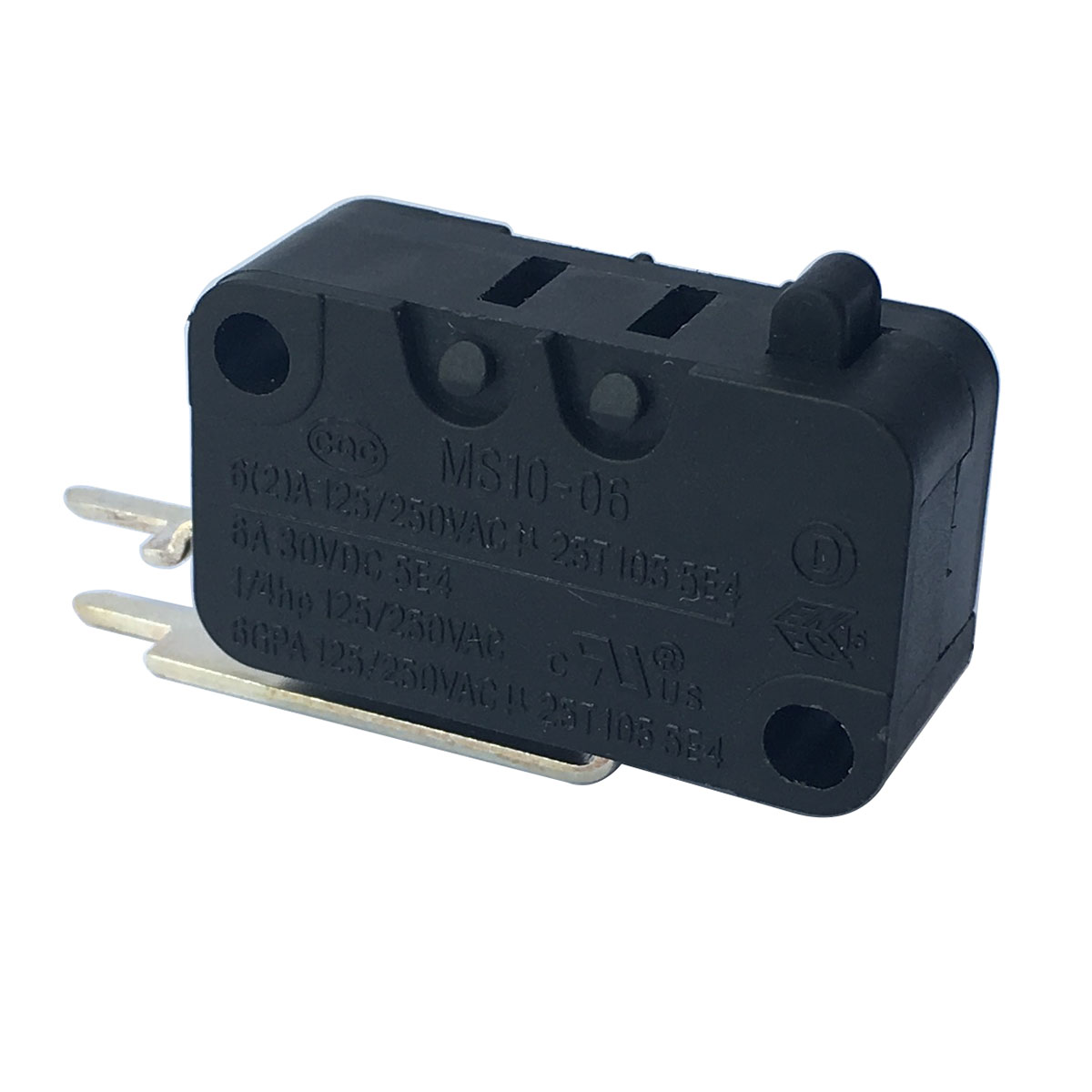

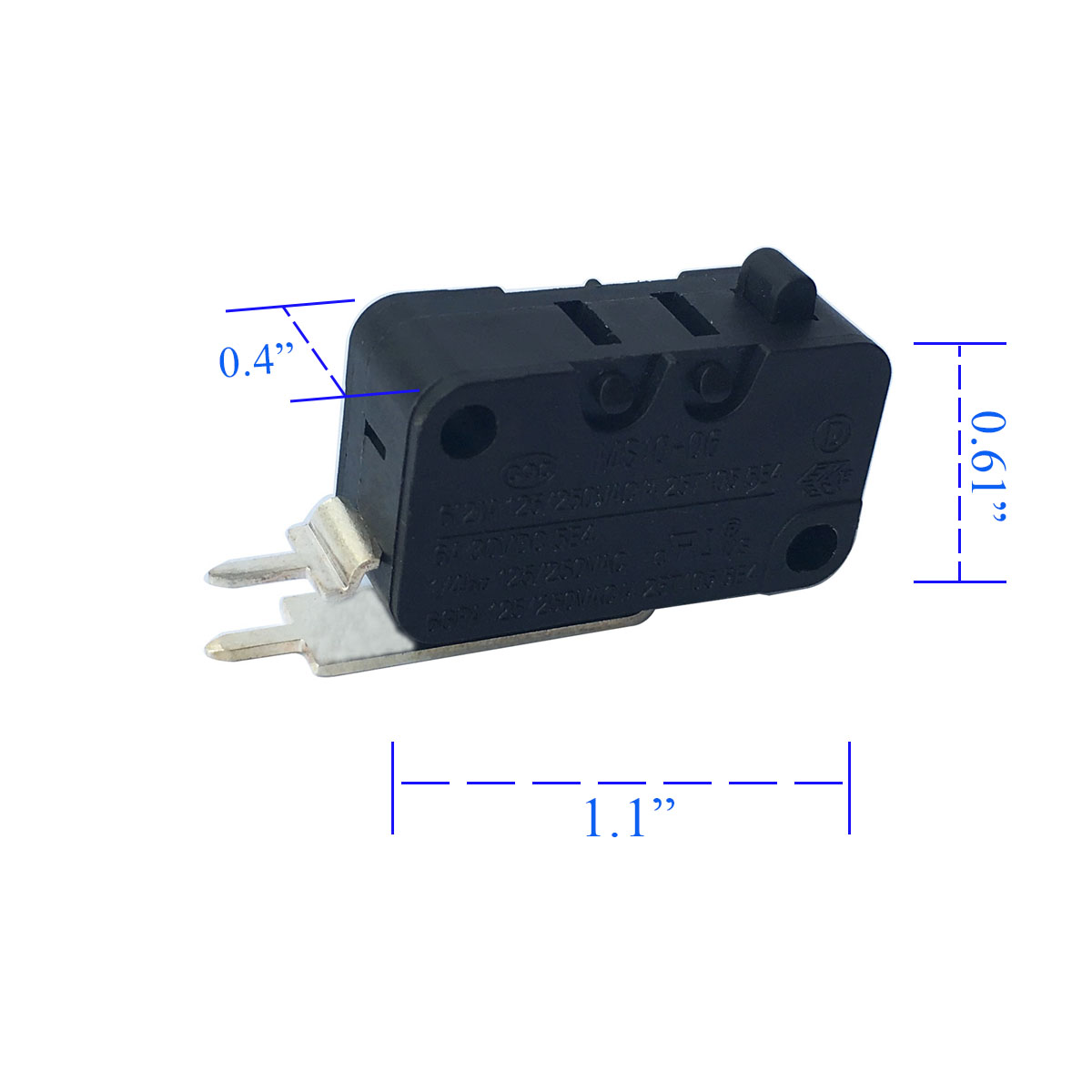

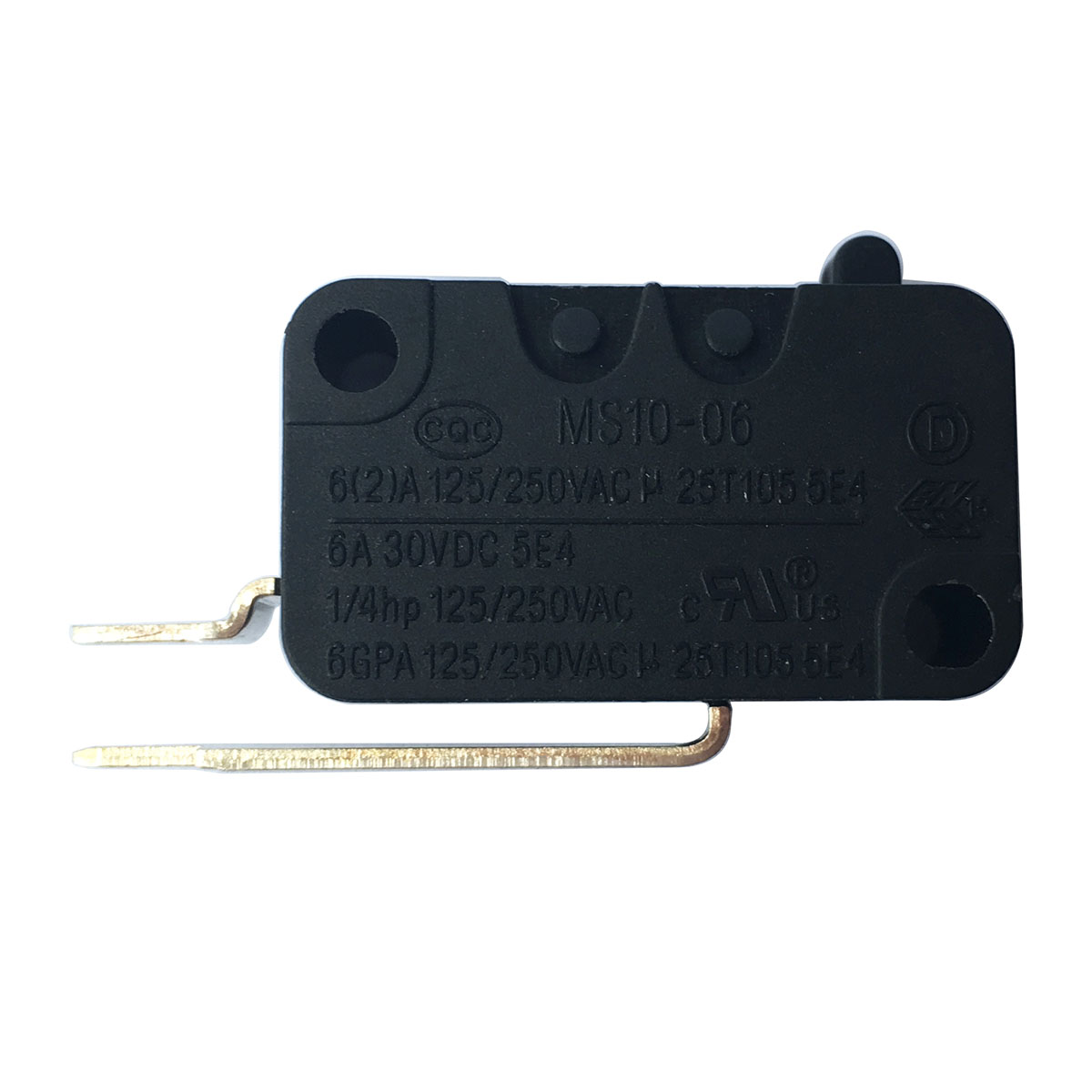

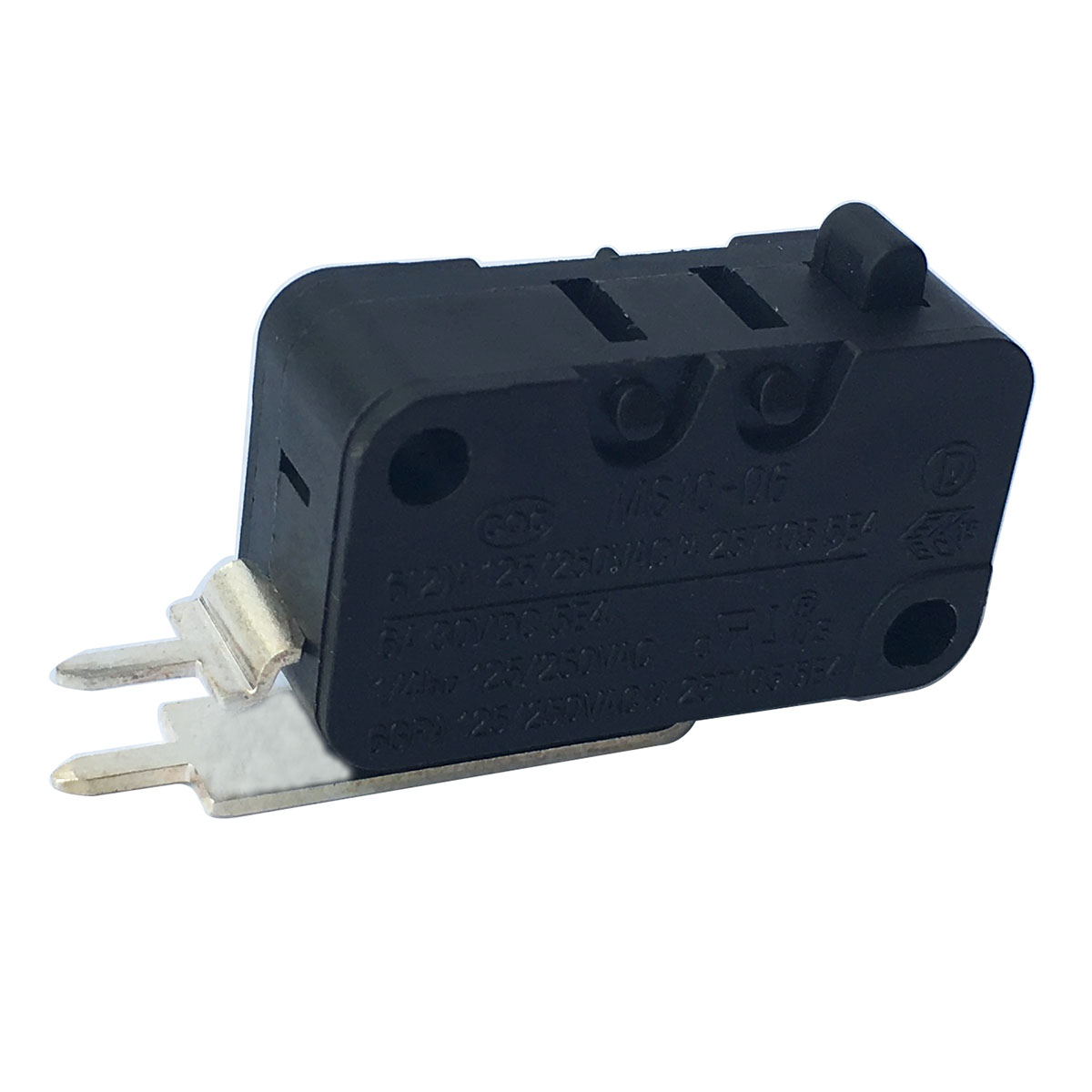

• LONYE Float switch W10195039 is found inside the dishwasher's tub,

  on the bottom.The water filling the dishwasher lifts the float, and when it reaches a certain level, it acts as a trigger for the float switch. The float triggers the float switch to shut off, thereby shutting off the flow of water into the dishwasher.

• Float switch WPW10195039 shuts the water fill valve off if the water level gets too high before the timed fill cycle ends.

• The most common reasons for replacing the float switch are when the dishwasher overfills with water, though this is more likely the water inlet valve not shutting off properly, or when the dishwasher won’t fill.

Float Switch WPW10195039 Fits The following Models:

• 7WDF5 7WDF530PAYM0 , 7WDF530PAYM1 , 7WDF530PAYM2 , 7WDF530PAYM3 , 7WDF530PAYM4 , 7WDF530PAYM5 , 7WDF530PAYM6 etc.

• ADB1100AWB0 , ADB1100AWB1 , ADB1100AWB2 , ADB1100AWB3 , ADB1100AWB4 , ADB1100AWB5 , ADB1100AWS0 , ADB1100AWS1 etc.

• BLB14BRANA0 , BLB14DRANA0 , BLB14DRANA1 , BLB14DRANA2 , BLB14DRANA4 etc.

• GLB14BBANA0 ,

• IDF320PAFW0 , IUD3100BW0 , IUD3100BW1 , IUD3100BW2 , IUD3100BW3 , IUD3100BW4 , IUD3100BW5 , IUD6100BB0 , IUD6100BB1 etc.

• JDB8000AWB0 , JDB8000AWB1 , JDB8000AWB2 , JDB8000AWB3 , JDB8000AWC0 , JDB8000AWC1 , JDB8000AWC2 , JDB8000AWS0 etc.

• KDFE104DBL0,KDFE104DBL1,KDFE104DBL2,KDFE104DSS0,KDFE104DSS1,KDFE104DSS2,KDFE104DWH0,KDFE104DWH1 etc.

• MDB4709PAB0,MDB4709PAB1,MDB4709PAB2,MDB4709PAB3,MDB4709PAB4,MDB4709PAM0,MDB4709PAM1,MDB4709PAM2 etc.

• WDF110PABB0,WDF110PABB1,WDF110PABB2,WDF110PABB3,WDF110PABB4,WDF110PABS4,WDF110PABT0,WDF110PABT1 etc

How to replace the float switch?

• Open the dishwasher door, and remove the screws.

• Remove the lower kickplate panel located below the dishwasher door

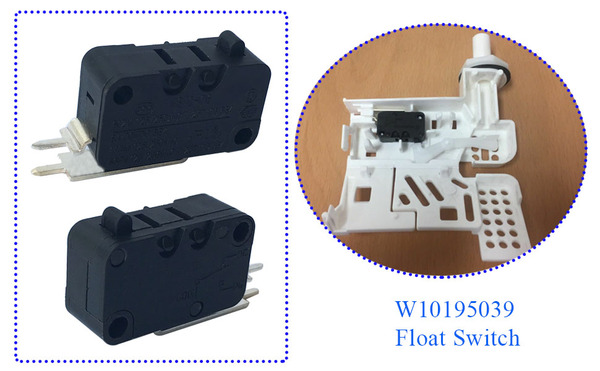

• A dishwasher's float switch will sit below the float assembly.

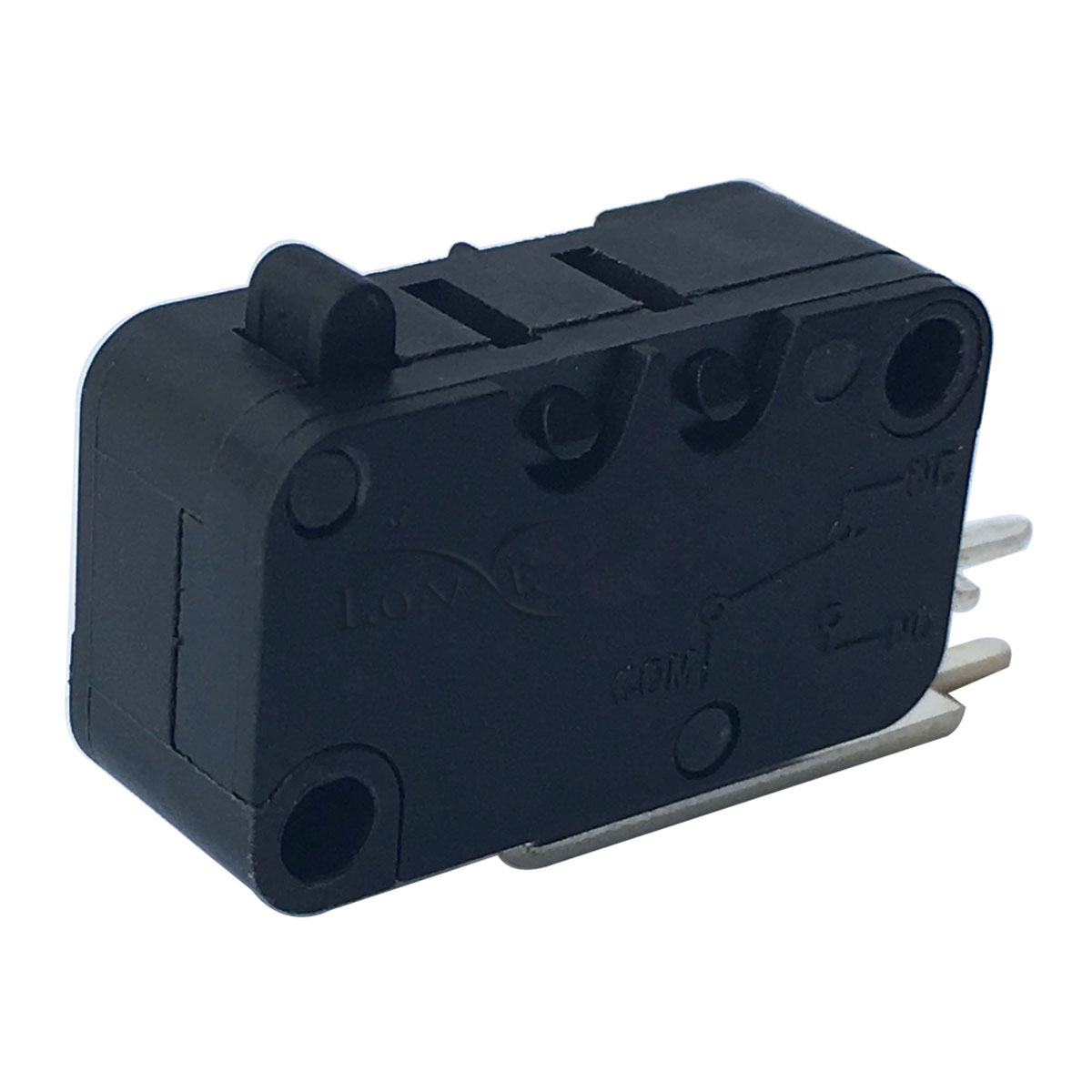

• There are two wires connected to the float switch, and they are connected with slip-on connectors. Grasp the slip-on connectors and pull firmly to remove the wires from the switch.

Notice:

• Do not pull on the wires themselves.

• A pair of needle nose pliers may be needed.
