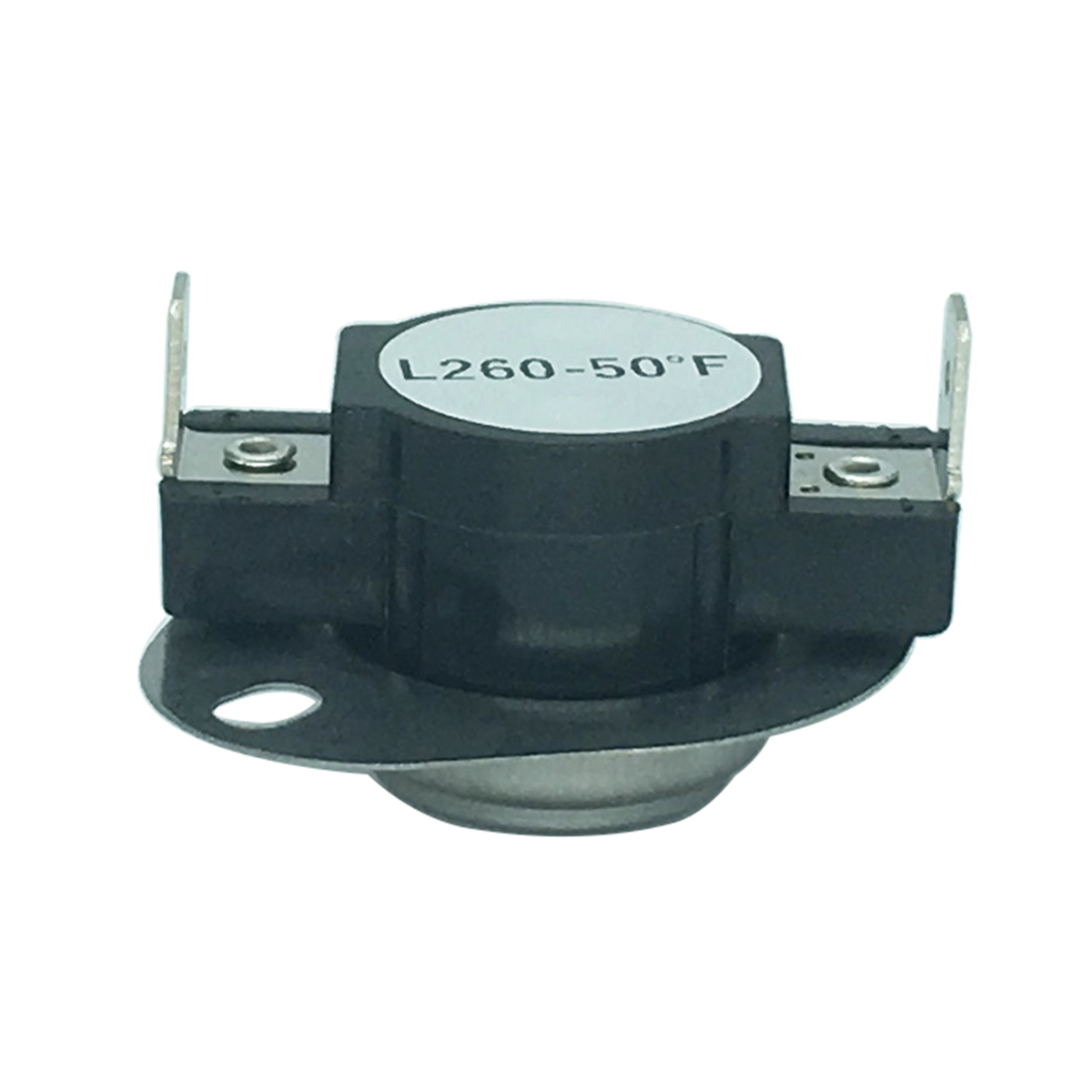

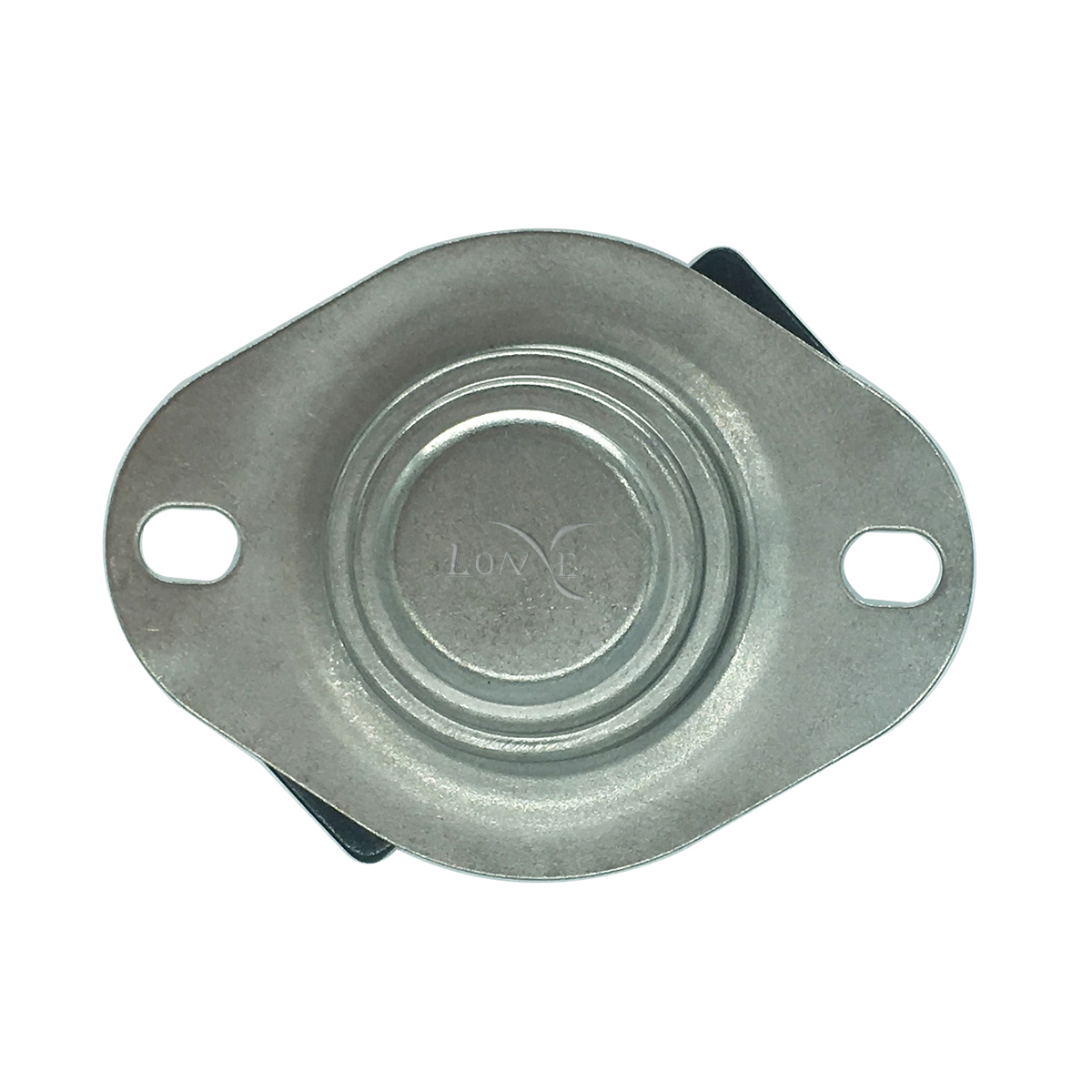

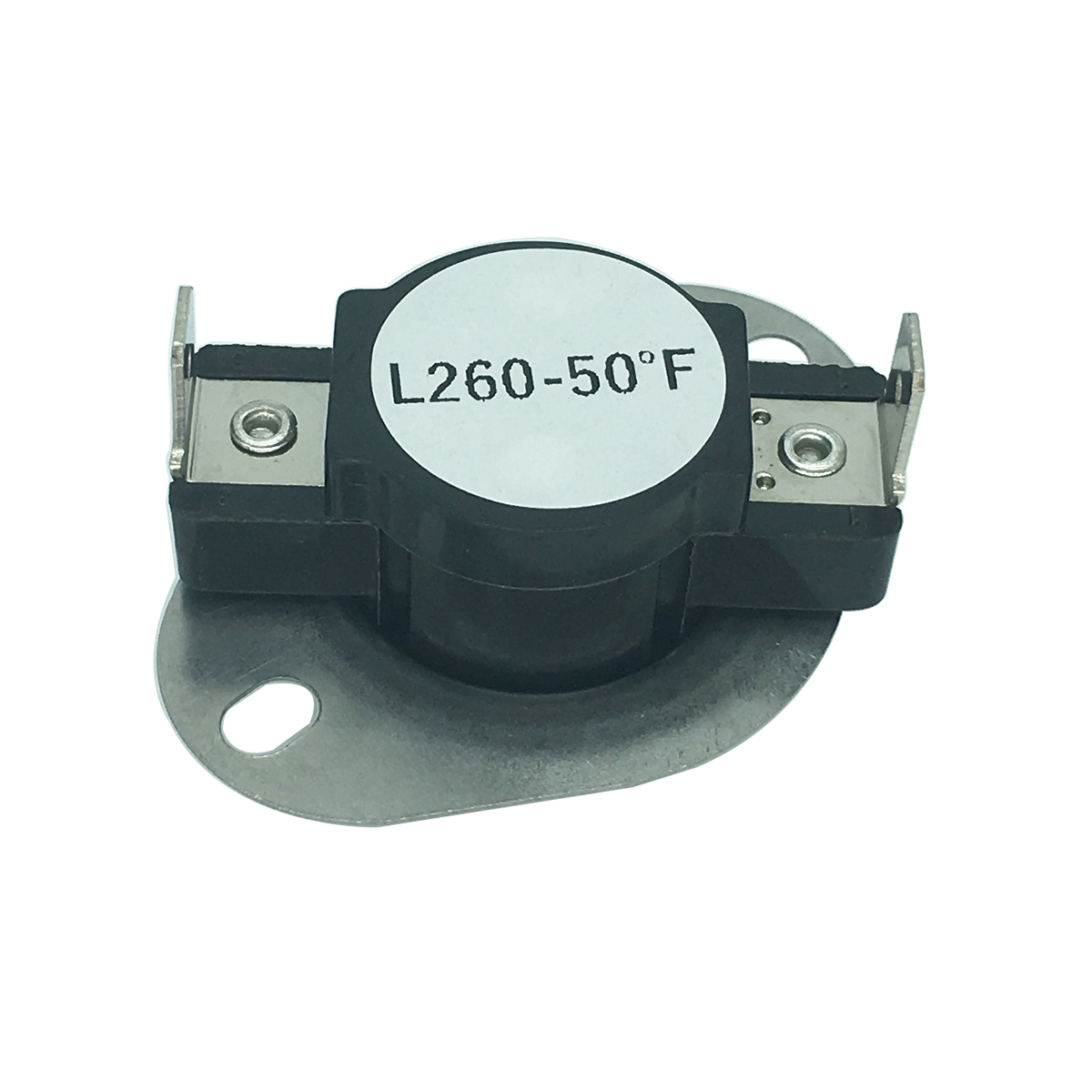

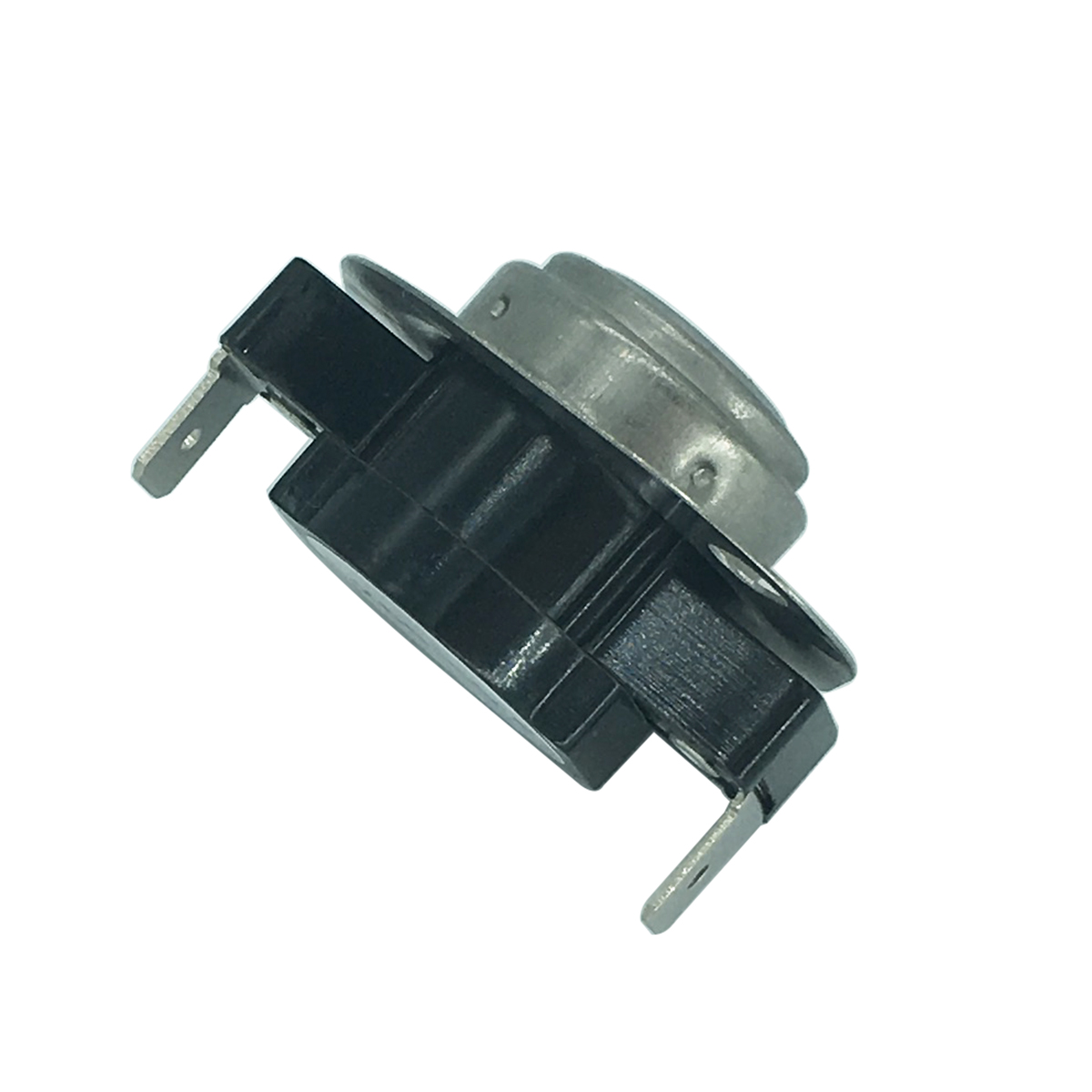

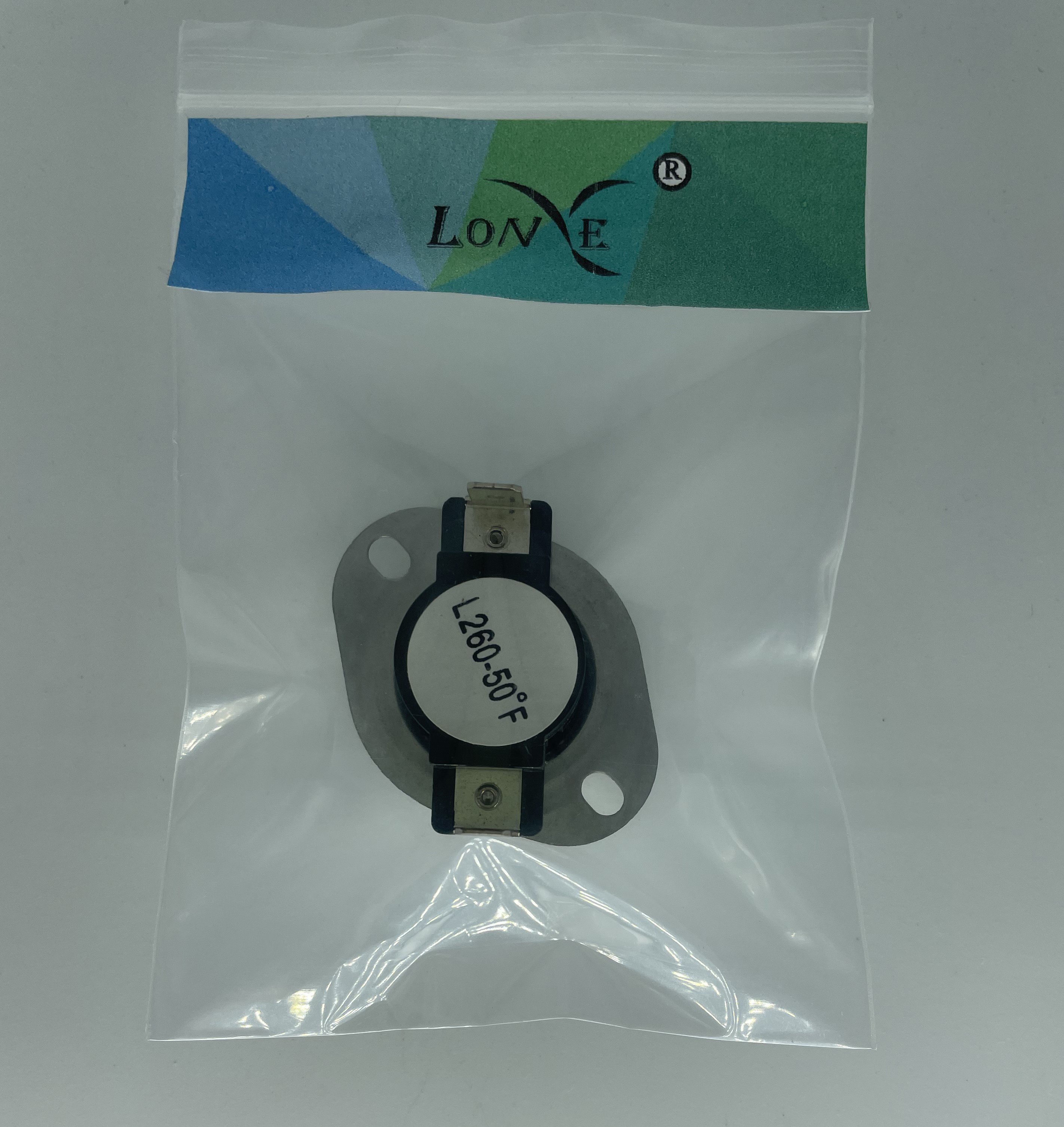

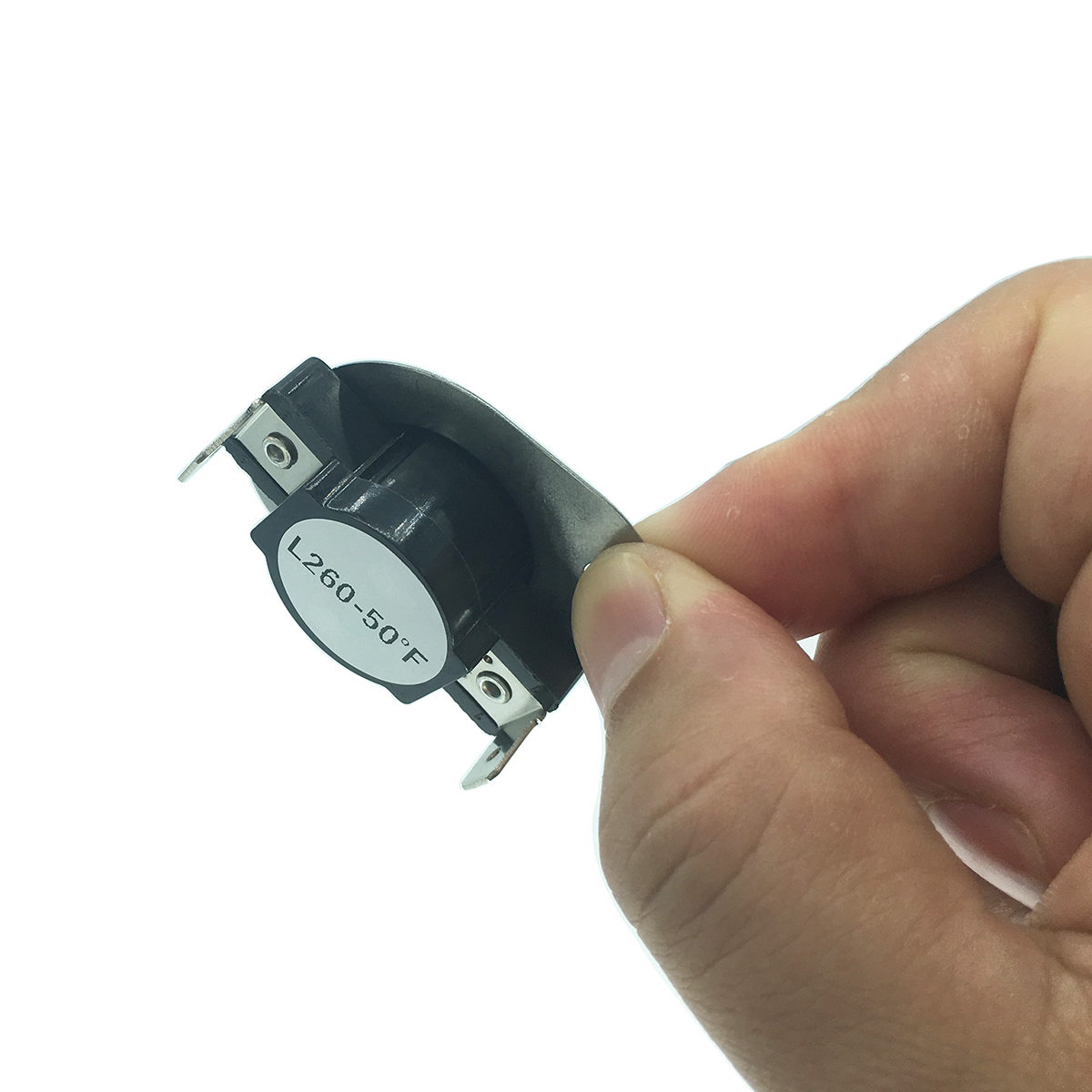

LONYE DC47-00018A Dryer Thermostat Replacement for Samsung Whirlpool Kenmore Maytag Dryer L260-50F
Share to：

LONYE DC47-00018A Dryer Thermostat Replacement for Samsung Whirlpool Kenmore Maytag Dryer L260-50F

Pro ID： 6990580600384
Price：
￥7.39
Features： The thermostat has a limit of 260°F and a differential of 50 degrees. And the heating element will cut out at 260 degrees and cycle back on once the internal temperature drops by 50 degrees.
Brand： LONYE
Item No： DC47-00018A
Color： silver
Spec.： High Limit Thermostat used on some Amana, Kenmore, Maytag, Samsung and Whirlpool Clothes Dryer models.
Product Details
Review(0)

Samsung DC47-00018A Thermostat

LONYE DC47-00018A Description:

  • The high limit thermostat is located inside the dryer, so you will need to take the dryer apart to access it for repair.

  • If the limit switch has blown, it might appear black or gray upon inspection. Also, your appliance likely has lost some of its capabilities.

  • Even if you restore power to the appliance by resetting its main circuit breakers, tripped by the limit switch, the appliance might not heat properly.

  • Only after you replace the switch will all of the appliance's typical competences return. Don't replace the switch until you identify the reason your appliance overheated and caused the switch to trigger; otherwise the issue might happen again.

Notice: Before you begin this repair, be sure that the power source to your dryer is disconnected.


LONYE Thermostat DC47-00018A Directly Replaces:

  • 20-G99Z-MB01, 1268363, 1122485, 6931EL3001B, 6931EL3001C

  • AH3530481, AH2038383, AP4201898, AP4440977, AP4045617, AP6008682

  • EA2038383, EA3530481, EAP2038383, ER6931EL3001E, ERDC47-00018A

  • PS2038383, PS353048

  • WP35001092

Feature:

  • 60T11 Style

  • Terminals: .25" Push-on

  • Voltage: 125 / 250V

  • Amperage: 25A


  • The function of High-limit thermostat DC47-00018A is to shuts off the heating element or burner when the dryer overheats.If the dryer is not regulating heat properly, you may need to replace the high limit thermostat.

    Fix the following symptoms:

  • Not drying properly

  • will not start

  • not enough heat

  • too hot

  • drying ends too soon


Notice:
If the limit switch has blown, it might appear black or gray upon inspection. Also, your appliance likely has lost some of its capabilities. Even if you restore power to the appliance by resetting its main circuit breakers, tripped by the limit switch, the appliance might not heat properly. Only after you replace the switch will all of the appliance's typical competences return. Don't replace the switch until you identify the reason your appliance overheated and caused the switch to trigger; otherwise the issue might happen again.
